Model: 4-Person
Track: 128' at 45°
Area: Lake of Bays
Year: 2004

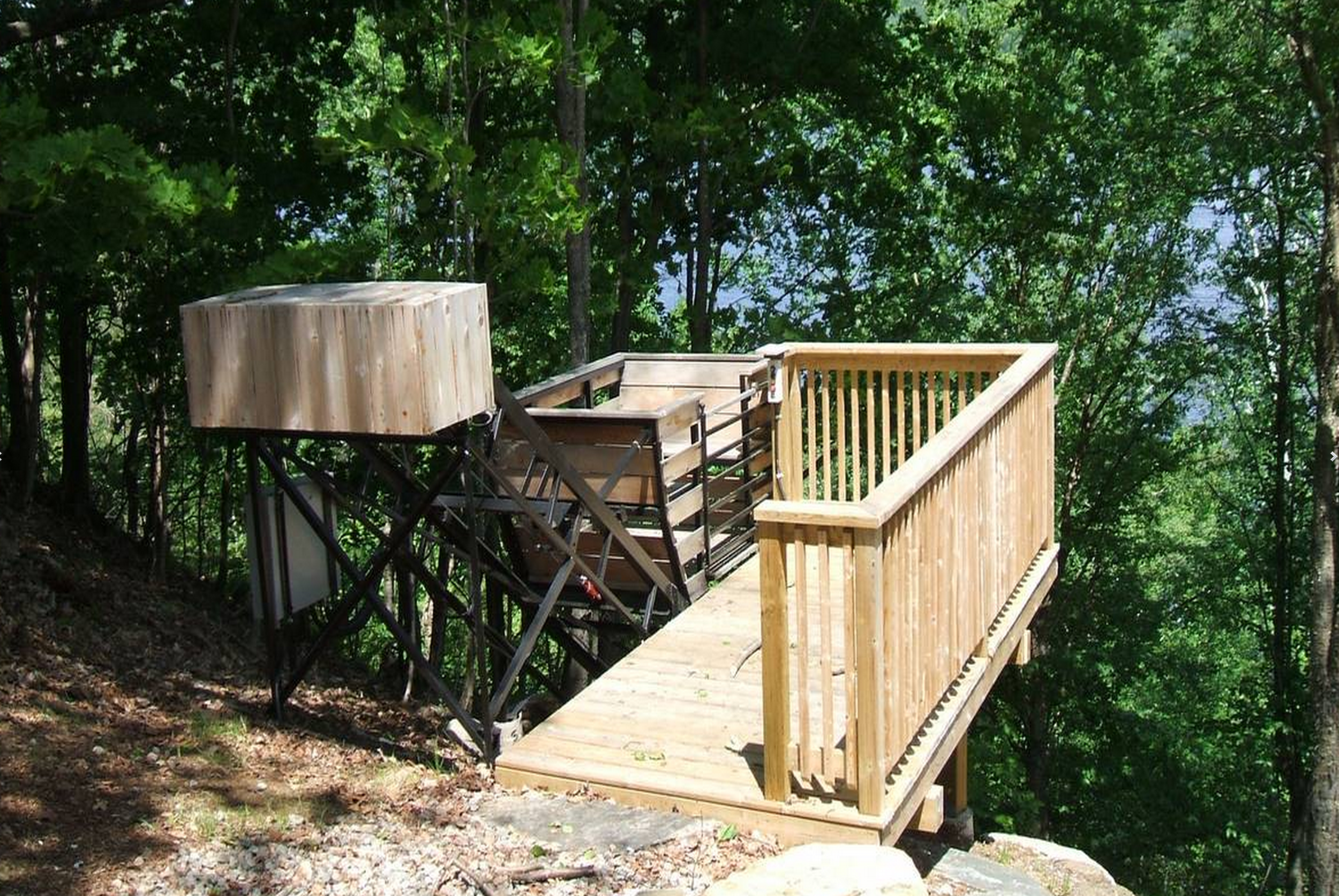

Before this lift was installed, the only access to the bottom was a slab rock staircase that had become hazardous because of shifting. The property was for sale and the builder realized that a lift would help him find a buyer. It did.
Before this lift was installed, the only access to the bottom was a slab rock staircase that had become hazardous because of shifting. The property was for sale and the builder realized that a lift would help him find a buyer. It did.
The hill under the track was a slope of loose rock with construction debris littering the area and water seeping out in places. We anchored the track with 12-inch diameter concrete footings top and bottom then set legs at 20-foot intervals. The legs are lagged directly into the bedrock or welded to steel plates and stakes driven into the ground. Because the track distributes the load on each leg, it helps stabilize the slope. The track has remained perfectly straight.
The lower end station is in an open field just above and not visible from the lake. It would be easy to add a wooden access platform but the car floor is less than 10" above ground level.
